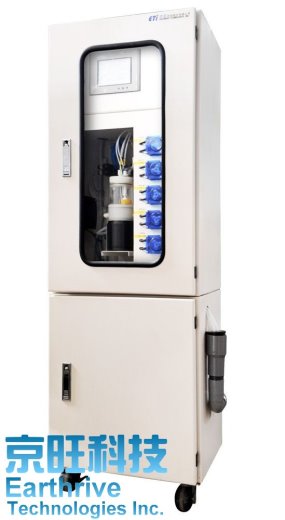

ETi-9115

    Features
    *Analysis Range: 1000ppm ~ 10000 ppm
    *The patent design of both of quantitative sampling and dilution device require no maintenance and regular flow calibration.
    *The use of large caliber sampling cup and sampling tube causes no pipe blockage.
    *The sampling tube and drain tube with large aperture pneumatic valve, which prevents from the fouling or blockage and it may happened in traditional solenoid valve.
    *Use the Titration Curve Differentiation to find the titration end point automatically in order to avoid the misjudgment of titration end point because of electrode offset potential.
    *The detection electrode is copper electrode and its probe is a solid chip (with one year above of service life)
    *The probe of calcium electrode is PVC membrane whose service life is about 3 ~ 6 months (it depends on the water quality).
    *Chinese graphic operation interface with easy operation, which can analyze data and search for the historical data and alarm message.
    *Auto regular calibration (the cycle time could be set by program).
    *It can manually analyze the foreign samples for the person in laboratory to do the comparison conveniently.

内容说明



Model.

ETi-9115

Display Screen

5.7 inches of color touch screen

Analysis Range

1000 ~ 10000 ppm

pH Value of Sample

pH 3 ~ 10

Temp. of Sample

5 ~ 45

Analysis Cycle Time

15~25 mins.(depends on its concentration)

Accuracy

10000 ± 700 ppm

Reproducibility

± 3 % full scale

Resolution

0.1 ppm

AutoCorrect Message and Calibration Record

Auto Updating is not required.

Standby Time

0 ~ 7200 sec

Auto Dilution Device

V

Historical Data and Record

V

Alarm Message and Record

V

Liquid Level Detection

V

Auto dosing

V
