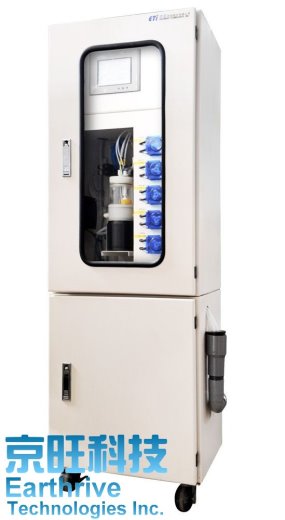

ETi-9310

    Features:
    ●The patent design of both of quantitative sampling and dilution device require no maintenance and regular flow calibration.
    ●The use of large caliber sampling cup and sampling tube causes no pipe blockage.
    ●The sampling tube and drain tube with large aperture pneumatic valve, which prevents from the fouling or blockage and it may happened in traditional solenoid valve.
    ●The proportion of sample and ion enhancer can be freely adjusted. The pH range of sample water is up to 1~12.
    ●Auto chemical cleaning: The electrode will lose its activity due to the pollution or microorganism covered for a long time, but its service life could be prolonged with regular cleaning.
    ●Chinese graphic operation interface with easy operation, which can analyze data and search for the historical data and alarm message.
    ●Regular two-point auto calibration (the cycle time could be set by program).
    ●It can manually analyze the foreign samples for the person in laboratory to do the comparison conveniently.

内容说明



Specification

Model

ETi-9310-F

Operation and Display

5.7 inches of color touch screen

Analysis Range

0 ~ 1,700 ppm

pH Value of Water Sample

pH 4-11

Sample Temp.

0-50

Analysis Cycle Time

< 5mins (999 minutes at most)

Accuracy

20±2 ppm or ±7 % full scale

Reproducibility

± 5 % full scale

Resolution

0.1 ppm

AutoCorrect

V

AutoCorrect Message and Record

V

Auto Check Electrode Offset Potential

V

Analysis Program Message

V

Historical Data

V

Historical Record

V

Alarm Message

V

Quantitative Sampler

V

Liquid Potential Detection (Quantitative Sampling)

V

Sampling Component

Pneumatic Valve

Drain Component

Pneumatic Valve

Manual Analysis of Foreign Sample

V

Filter (Optional)

Particulate matter concentration < 2%,

particle size < 1mm

Dosing Kit

Included
