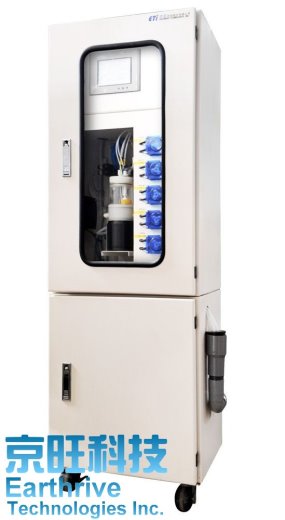

ETi-9115
-
Features
*Analysis Range: 1000ppm ~ 10000 ppm
*The patent design of both of quantitative sampling and dilution device require no maintenance and regular flow calibration.
*The use of large caliber sampling cup and sampling tube causes no pipe blockage.
*The sampling tube and drain tube with large aperture pneumatic valve, which prevents from the fouling or blockage and it may happened in traditional solenoid valve.
*Use the Titration Curve Differentiation to find the titration end point automatically in order to avoid the misjudgment of titration end point because of electrode offset potential.
*The detection electrode is copper electrode and its probe is a solid chip (with one year above of service life)
*The probe of calcium electrode is PVC membrane whose service life is about 3 ~ 6 months (it depends on the water quality).
*Chinese graphic operation interface with easy operation, which can analyze data and search for the historical data and alarm message.
*Auto regular calibration (the cycle time could be set by program).
*It can manually analyze the foreign samples for the person in laboratory to do the comparison conveniently.
内容说明
|
Model. |
ETi-9115 |
|
Display Screen |
5.7 inches of color touch screen |
|
Analysis Range |
1000 ~ 10000 ppm |
|
pH Value of Sample |
pH 3 ~ 10 |
|
Temp. of Sample |
5 ~ 45℃ |
|
Analysis Cycle Time |
15~25 mins.(depends on its concentration) |
|
Accuracy |
10000 ± 700 ppm |
|
Reproducibility |
± 3 % full scale |
|
Resolution |
0.1 ppm |
|
AutoCorrect Message and Calibration Record |
Auto Updating is not required. |
|
Standby Time |
0 ~ 7200 sec |
|
Auto Dilution Device |
V |
|
Historical Data and Record |
V |
|
Alarm Message and Record |
V |
|
Liquid Level Detection |
V |
|
Auto dosing |
V |
