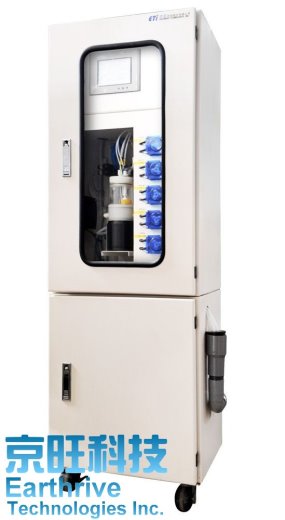

ETi-9550

    Features
    ●The patent design of both of quantitative sampling and dilution device require no maintenance and regular flow calibration.
    ●The use of large caliber sampling cup and sampling tube causes no pipe blockage.
    ●The sampling tube and drain tube with large aperture pneumatic valve, which prevents from the fouling or blockage and it may happened in traditional solenoid valve.
    ●While doing the measurement, first deduct the background absorbance to control the Solid Suspension influence.
    ●Chinese graphic operation interface with easy operation, which can analyze data and search for the historical data and alarm message.
    ●Auto regular calibration (the cycle time could be set by program).
    ●It can manually analyze the foreign samples for the person in laboratory to do the comparison conveniently.

内容说明



Part No.

ETi-9550

Display Screen

7 inches of color touch screen

Analysis Range

0 ~ 10 ppm

Sample Temp.

5 ~ 45℃

Analysis Cycle Time

6 ~ 8 mins.

Accuracy

< 5 %

Reproducibility

± 5 % full scale

Resolution

0.03 ppm

AutoCorrect Message and Calibration Record

V

Standby Time

0 ~ 7200 sec

Historical Data and Record

V

Alarm Message and Record

V

Liquid Level Detection

V

Auto dosing

V

Current Output 4~20 mA

V

Alarm output

V
