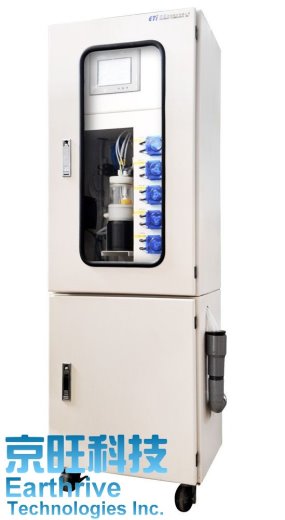

ETi-9390

    Features
    ■ The use of large caliber sampling cup and sampling tube causes no pipe blockage.
    ■ The sampling tube and drain tube with large aperture pneumatic valve, allow the air to drive the valve, which prevents from the suspended solid blockage caused by calcium fluoride and it may happened in traditional solenoid valve.
    ■ Graphic operation interface with easy operation. Chinese operation interface is for option.
    ■ No mechanical button. All buttons and keypads are shown on touch screen.
    ■ Color touch screen is available. It can analyze data and display the Historical Trend Graph.

内容说明

Specification

● Analysis Range: 0.01ppm ~ 1700ppm or 0.1ppm ~ 17000ppm

● Accuracy < 5 % of reading

● Electrode Reaction Time: < 2mins

   Low Concentration < 5mins

● Manual Calibration

● Two-point Auto Calibration (optional)

● Auto NaOH Injection

● Auto Cleaning of Chemical Reaction Tank (water washing and acid cleaning)

● Current output for each set is 4mA ~ 20mA. The interface is RS-232 or RS-485.

● Analyze at most three samples. (for option to purchase)
