  • On-line Ions Analyzer

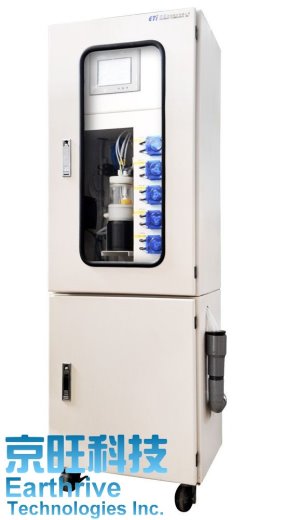

  • On-line Copper Ions Analyzer

ETi-9515

    Features
    ●Analysis Range: 0 ~ 50 ppm
    ●The patent design of both of quantitative sampling and dilution device require no maintenance and regular flow calibration.
    ●The use of large caliber sampling cup and sampling tube causes no pipe blockage.
    ●The sampling tube and drain tube with large aperture pneumatic valve, which prevents from the fouling or blockage and it may happened in traditional solenoid valve.
    ●While doing the measurement, first deduct the background absorbance to control the Solid Suspension influence.
    ●If the particulate matter concentration of water sample < 1% and particle size < 1mm, no need to install the filter.
    ●Chinese graphic operation interface with easy operation, which can analyze data and search for the historical data and alarm message.
    ●Auto regular calibration (the cycle time could be set by program).
    ●It can manually analyze the foreign samples for the person in laboratory to do the comparison conveniently.

内容说明



                               Model.

                ETi-9515-Cu

Display Screen

           7 inches of color  touch screen

Analysis Range

0 ~ 50 ppm

pH Value of Water Sample

pH 4 ~ 12

Sample Temp.

5 ~ 45℃

Analysis Cycle Time

10 ~ 15 mins.

Accuracy

50 ppm ± 3.5 ppm

Reproducibility

± 3 % full scale

Resolution

0.001 ppm
AutoCorrect Message and Calibration Record V

Standby Time

0 ~ 7200 (sec)

Auto Dilution System

V (DI water)

Historical Data and Record

V

Alarm Message and Record

V

Liquid Level Detection

V

Auto Dosing

V
